Deep Groove Ball Bearings

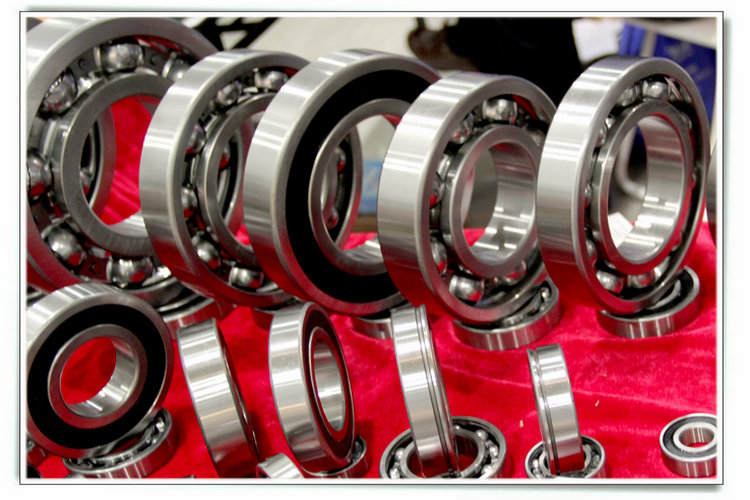

Deep Groove Ball Bearings mainly take radial load as well as take moderate axial load. With less coefficient of friction, high limiting speed, large size range and variations or structure, they are suitable for precision instrument, low noise motors, automobiles, motorcycles, and other common machinery as a widely used type of bearings in machinery industry.

The Meaning of Suffix


1. Prefix		TC	Phenolic cage, inner ring guided	6. Special offerings
R	MRC inch series	TN	Polyamide cage	HC4	Full Ceramic bearing
W	Stainless	TN9	Fibreglass reinforced Polyamide	HC5	Ceramic ball set

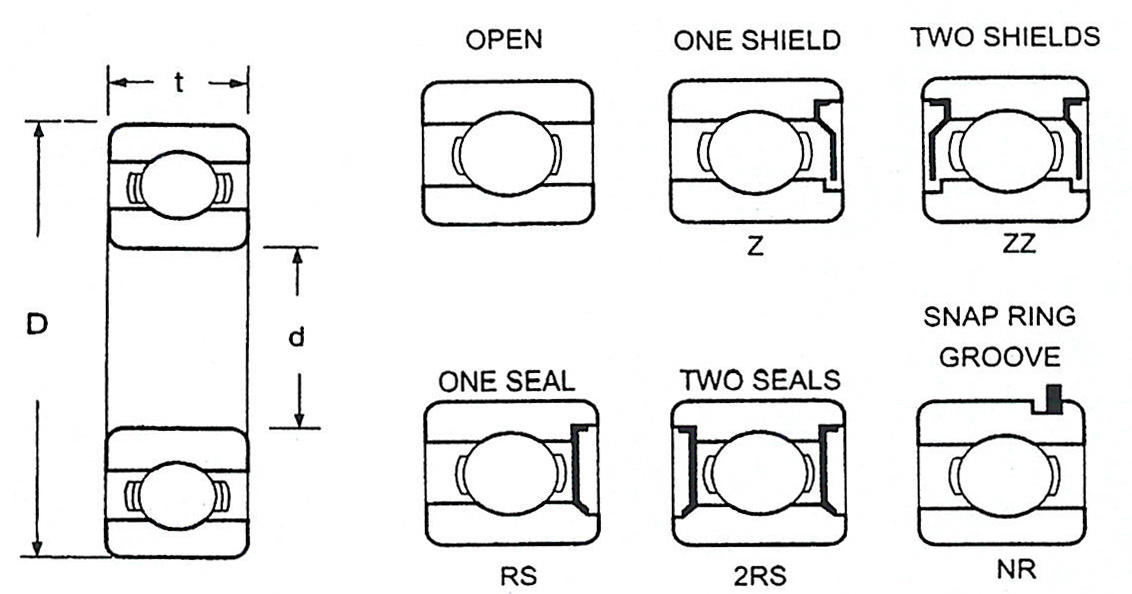

2.Seals Shields		Y	Pressed Brass cage, ball guided	HYB	MRC hybrid bearing
FF	MRC shield designation SKF Z	4. Modification		VA201	Special specification for
	Metal backed one side of	C	MRC designation for Cartridge		kiln trucks
	bearing (also SKF 2Z)		type bearing	VA 208	Graphite segment cage for
RS2	As RS1 but of Fluorocarbon	N	Snap ring groove		hi- temp applications
	rubber for higher temperatures	NR	Snap ring & groove	VA 228	Graphite cage for hi-temp
	(also 2RS2)	N1,N2	1 or 2 locating notches		applications
RSL	As RZ, new design, (also 2RSL)	S	MRC Conradtype	7. Lubrication
RSH	As RS1 new design, (Also 2	VL0241	Electrical insulation of outer ring	GJN	Di-urea, Hi-temp.115 cSt @
	RSH) for bearings of 60, 62 and	VL2071	Electrical insulation of inner ring		40°C, range -40°C to + 150°C
	63 series up to 52mm o/d.	5.Clearance/Tolerances		GMB	Lithium, Medium temp.120 cSt
RZ	Metal backed non-contact seal	C1	Clearance < C2		@ 40°C, -30°C to + 110°C
	on one side (Also 2RZ)	C2	Clearance < Normal	HT 51	Polyurea hi-temp, 110 cSt @
Z	Metal plate	C0,CN	Normal not shown		40°C, -30°C to + 140°C
ZZ	MRC seal designation (SKF 2RS1)	C3	Clearance >C0 or CN	LHT 23	Lithium,Wide range, 26 cSt @
2Z	Steel plate on 2 sides	C4	Clearance >C3		40°C, -50°C to + 140°C
3.Cage Design		C78	P5 or ABEC 5 tolerance	LHT 30	Lithium, Wide range, 74 cSt at
J	Pressed steel cage, rolling	C782	C78 + C2		40°C, -40°C to +180°C
	element guided	C783	C78 + C3	LHT 64	Clay, Wide range,13 cSt @
JEM	Steel cage (J), quiet running, C3	C4	Clearance >C3		40°C, -73°C to + 149°C
	clearance (not marked on	P5	Tolerance to IS0 class 5 or	MT33*	Lithium, Medium temp. 74 cSt
	bearing)**		ABEC 5		@ 40°C, -30°C to + 120°C
M	Machined brass cage, rolling	** If sealed, use GJN grease		MT47*	Lithium, Medium temp. 70 cSt
	element guided				@ 40°C, -30°C to + 110°C
MA	Machined brass cage, outer ring			W64	Solid oil, various types
	guided				available depending on
TC	Phenolic cage, inner ring guided				the temperature range.
